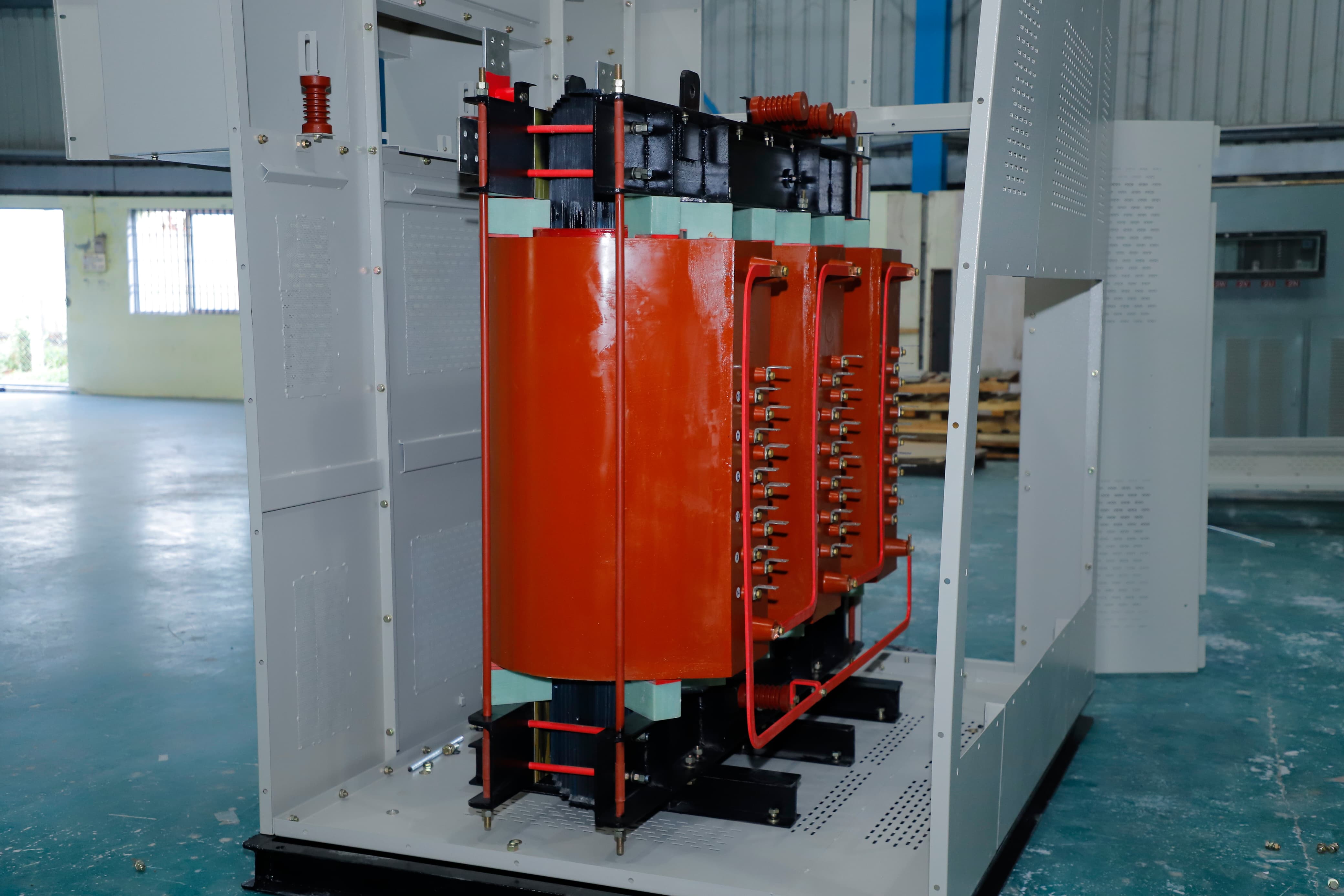

Dry Type Transformers
Our Cast Resin Dry Type Transformers are built to perform in demanding environments. With a focus on fire resistance, energy efficiency, and zero maintenance, these transformers are ideal for mission-critical sectors.
- Fire-Resistant & Non-Hygroscopic
- Minimal Losses & Low Noise
- High Impulse Strength & Efficient Cooling
- Compact, Easy to Install & Reliable
- Customizable to Client Requirements
Product Overview
EVERWIN Transformers are manufactured in a state-of-the-art facility in Salem, Tamil Nadu. We use advanced core stacking, vacuum casting, and foil winding technology to deliver transformers that are safe, silent, and robust. Available for both indoor and outdoor applications with IP23, IP32 & IP45 protection ratings.
Technical Specifications
| Ratings | 63 kVA to 5000 kVA |
| Voltage Class | Up to 36 kV (HV), 3.3 kV to 12 kV (LV) |
| Cooling Types | ANAN / ANAF |
| Frequency | 50 / 60 Hz |
| Standards | IS 11171, IEC 60076, ANSI, BS, SABS, NEMA |
| Vector Groups | Dyn11, YNd11, Dyn1, Dyn5 |
| Tap Changer Options | OCTC, OLTC, OCTL |
| Phases | Single & Three Phase |
| Insulation Class | F / H |
| Climatic Class | C2 | Environmental Class: E2 | Fire Class: F1 |
🏅 Quality & Testing
All units undergo routine, type, and special tests in our modern lab facility. Every transformer is tested to national and international standards for performance and durability.
🎯 Applications,
- Infrastructure & High-Rises
- Hospitals, Malls & Schools
- Metro & Railways
- Renewable Energy & Industrial Units
🔐 Certifications,
We are proud to be ISO 9001:2015 certified, ensuring product excellence and customer satisfaction through quality-first manufacturing and service processes.
